Advanced PDF/HTML Templates in NetSuite support many formatting options, but not all standard HTML and CSS properties are compatible with the PDF rendering engine.
Scenario
A user attempted to create a diagonal line using CSS rotation:
transform: rotate(45deg);
Although the line appeared correctly inside the editor, it did not render in the generated PDF output.
Change the code on your Advanced PDF/HTML Template:
On your Advanced PDF/HTML Template, apply the code below:
<p rotate="-45" font-size="48pt">______________</p>
Results:

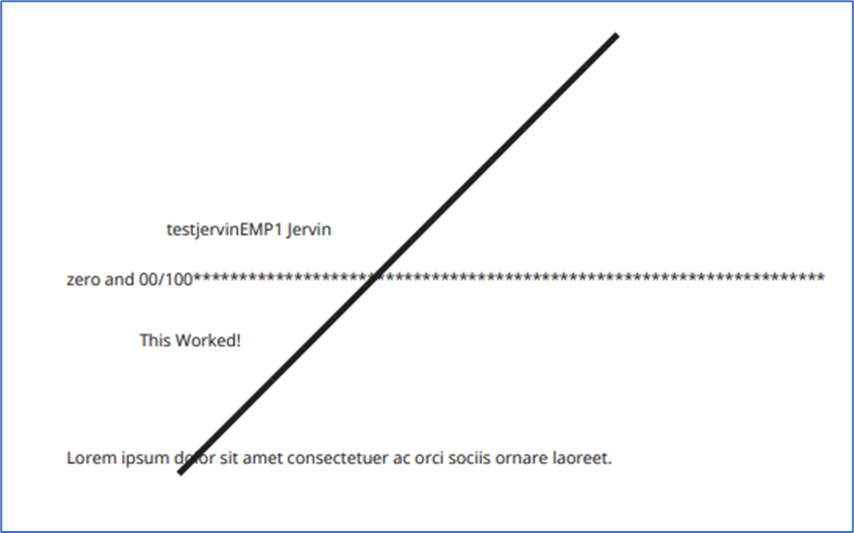

Once done, the diagonal line should now appear on your template as shown below:
Explanation:
The issue was caused by a limitation of the BFO report generator used by NetSuite Advanced PDF/HTML Templates, which does not fully support the CSS transform property.
As an alternative, the code rotate="-45" was used successfully. This uses the supported rotate attribute instead of CSS transforms and renders properly in the PDF preview and printed output.
For details on supported features, please refer to the official documentation.
Now you know how to add diagonal lines to your Advanced PDF/HTML Templates. Feel free to use this approach based on your business needs. I hope this helps!
