RTF export to PDF Line shape not rendered properly

Question

Hello All,

I have added horizontal lines above the text in the RTF template; however, it is not rendered properly when exporting to PDF:

* The first line intersects with the text and does not reach the end of it. Even the start and the end of the rectangle are not as per the RTF Template.

Any hints/tips on this?

Screenshots of the RTF template (PFA)

Screenshots of the PDF (PFA)

138454tnemhcatta.rtf

Offer of Employment Staff - Expat_Offer of Employment Staff - Expat-10.pdf

As per oracle.docs : , there should not be an issue.

https://docs.oracle.com/en/cloud/saas/otbi/otbi-pub-design/add-drawings-shapes-and-clip-art.html

Thanks

Bernard

Bhaskar Konar · Answer

PFB the Templates that I used.

Shape_Txt.pdf

138454tnemhcatta_BK.rtf

Bhaskar Konar · Answer

https://community.oracle.com/products/oracleanalytics/discussion/24150/rtf-export-to-pdf-line-shape-not-rendered-properly

Hi @Bernard T,

I changed a bit in the RTF Template and it is now returning like following, is it some where near to your expectation?

RTF:

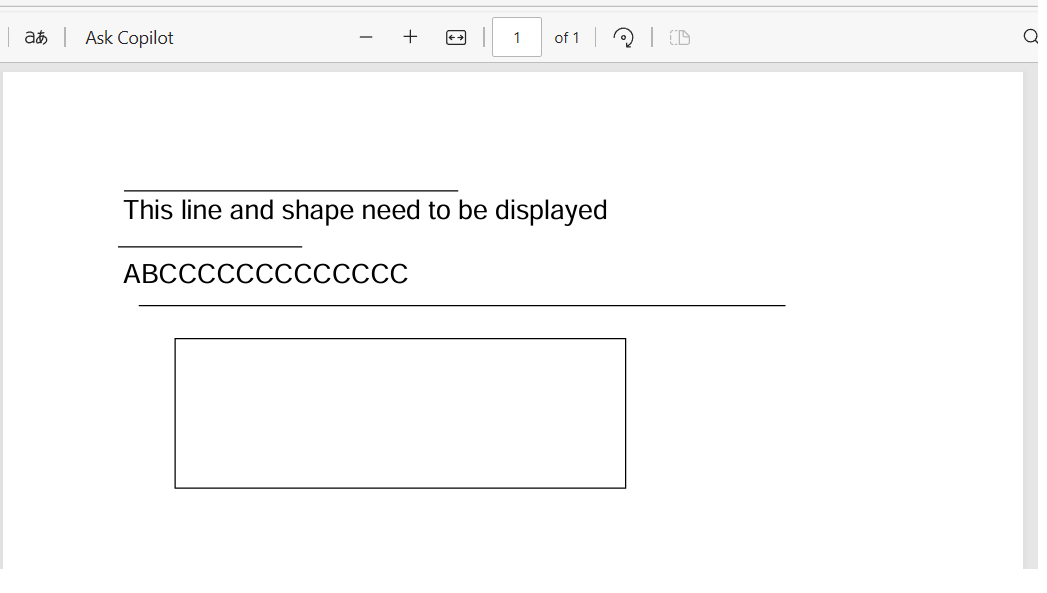

PDF:
