Hello Team,

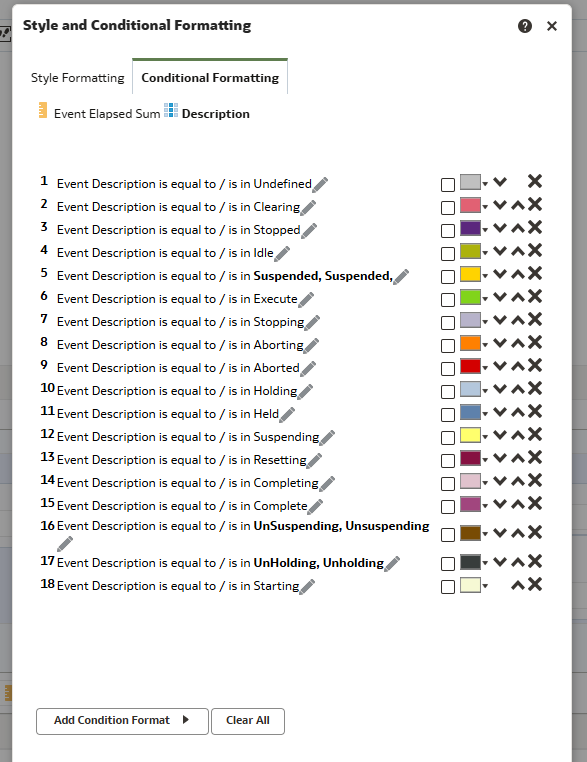

we would like to create a pie chart in Oracle Bi Publisher RTF in which the pie slices are colored using a conditional formatting. This is possibile in the BI analytics like in the following image.

However, we tried to modify the XML code in the pie advanced tab. Our goal is to give a particular color for each event description to get the same pie chart that we see in the Bi Analytics.

This is the original code, in which we tried to give to the id series a color in the builder tab, but we cannot choose the specific description (it selects the attribute in alphabetical order):

<Graph seriesEffect="SE_NONE" graphType= "PIE"><LegendArea visible="true"/>
<SeriesItems><Series id="0" color="#FF0000"/></SeriesItems>
<SliceLabel visible="true"><ViewFormat decimalDigit="1" decimalDigitUsed="true"/>
</SliceLabel>

<DataValues><xsl:for-each-group select=".//DATASET_STATE" group-by="EVENT_DESCRIPTION"><xsl:sort select="current-group()/EVENT_DESCRIPTION"/>
<RowData><Cell><xsl:value-of select="sum(current-group()/STATE_ELAPSED[.!=''])"/></Cell></RowData></xsl:for-each-group></DataValues>
</LocalGridData>
</Graph>

<LocalGridData colCount="1" rowCount="{count(xdoxslt:group(.//DATASET_STATE, 'EVENT_DESCRIPTION'))}">
<RowLabels><xsl:for-each-group select=".//DATASET_STATE" group-by="EVENT_DESCRIPTION"><xsl:sort select="current-group()/EVENT_DESCRIPTION"/>
<Label><xsl:value-of select="current-group()/EVENT_DESCRIPTION"/></Label></xsl:for-each-group></RowLabels>

This is the new code, that doesn't work properly:

<Graph seriesEffect="SE_NONE" graphType= "PIE"><LegendArea visible="true"/>

<SeriesItems><xsl:for-each-group select=".//DATASET_STATE" group-by="EVENT_DESCRIPTION"><xsl:sort select="current-group()/EVENT_DESCRIPTION"/><Series id="0" color="#FF0000"/><Series id="{position()}"><xsl:attribute name="color"><xsl:when test="current-group()/EVENT_DESCRIPTION = 'Aborted'">#FF0000</xsl:when>
xsl:otherwise#FFFF00</xsl:otherwise>
</xsl:choose>
</xsl:attribute>
</Series>
</xsl:for-each-group>

<SliceLabel visible="true"><ViewFormat decimalDigit="1" decimalDigitUsed="true"/>
</SliceLabel>

<DataValues><xsl:for-each-group select=".//DATASET_STATE" group-by="EVENT_DESCRIPTION"><xsl:sort select="current-group()/EVENT_DESCRIPTION"/>
<RowData><Cell><xsl:value-of select="sum(current-group()/STATE_ELAPSED[.!=''])"/></Cell></RowData></xsl:for-each-group></DataValues>
</LocalGridData>
</Graph>

</SeriesItems><LocalGridData colCount="1" rowCount="{count(xdoxslt:group(.//DATASET_STATE, 'EVENT_DESCRIPTION'))}">
<RowLabels><xsl:for-each-group select=".//DATASET_STATE" group-by="EVENT_DESCRIPTION"><xsl:sort select="current-group()/EVENT_DESCRIPTION"/>
<Label><xsl:value-of select="current-group()/EVENT_DESCRIPTION"/></Label></xsl:for-each-group></RowLabels>

We don't know why when we use xsl:choose it automatically takes the link that is present in the code.

Can anyone help us? Thanks
