BIP: Procedure Call DM Error - PLS-00306: wrong number or types of arguments in call to CAST_TO_RAW

Pradeep Moganti

As elaborated in the article we are in the process of developing a BIP report identified as a Procedure Call. An input parameter of type String has been included in the report. However, we are experiencing the following error when attempting to run the report.

java.sql.SQLException: ORA-06550: line 10, column 41: PLS-00306: wrong number or types of arguments in call to 'CAST_TO_RAW' ORA-06550: line 10, column 5: PL/SQL: Statement ignored ORA-06550: line 16, column 8: PLS-00456: item '2' is not a cursor ORA-06550: line 16, column 3: PL/SQL: Statement ignored

Following is the code that we have in the report

Parameters:

Name: P_QRY
Data Type: String
Parameter Type: Text

Data Model:

DECLARE
  l_query VARCHAR2(32767);

  TYPE ref_cursor IS REF CURSOR;
  l_result_set ref_cursor;
BEGIN
  l_query := UTL_ENCODE.BASE64_DECODE(UTL_RAW.CAST_TO_RAW(:P_QRY));

 OPEN :l_result_set
  FOR UTL_RAW.CAST_TO_VARCHAR2(l_query);
END;

Error:

We would be grateful if anyone could provide guidance on how to resolve this matter.

MandeepGupta

BIP: Procedure Call DM Error - PLS-00306: wrong number or types of arguments in call to CAST_TO_RAW

Pradeep Moganti

Nov 20, 2024

As elaborated in the article we are in the process of developing a BIP report identified as a Procedure Call. An input parameter of type String has been included in the report. However, we are experiencing the following error when attempting to run the report.

java.sql.SQLException: ORA-06550: line 10, column 41: PLS-00306: wrong number or types of arguments in call to 'CAST_TO_RAW' ORA-06550: line 10, column 5: PL/SQL: Statement ignored ORA-06550: line 16, column 8: PLS-00456: item '2' is not a cursor ORA-06550: line 16, column 3: PL/SQL: Statement ignored

Following is the code that we have in the report

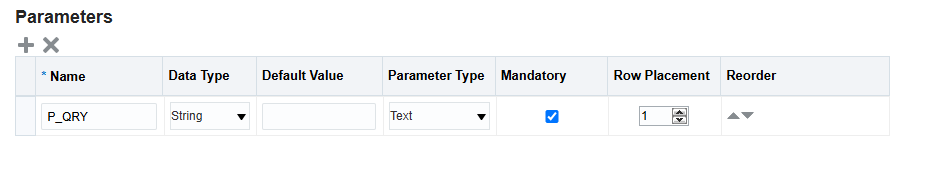

Parameters:

Name: P_QRY
Data Type: String
Parameter Type: Text

https://us.v-cdn.net/6037859/uploads/V07NE9F8J5X4/image.png

Data Model:

DECLARE
  l_query VARCHAR2(32767);

  TYPE ref_cursor IS REF CURSOR;
  l_result_set ref_cursor;
BEGIN
  l_query := UTL_ENCODE.BASE64_DECODE(UTL_RAW.CAST_TO_RAW(:P_QRY));

 OPEN :l_result_set
  FOR UTL_RAW.CAST_TO_VARCHAR2(l_query);
END;

https://us.v-cdn.net/6037859/uploads/6TLNDG7CMUVU/image.png

Error:

https://us.v-cdn.net/6037859/uploads/FVVJSXV2M1NM/image.png

We would be grateful if anyone could provide guidance on how to resolve this matter.

---

View Post

Hi,

What is your exact requirement? Or you just trying to test out the code mentioned in article?

Thanks.
