How to add an imagen in the report RTF

Josue Jimenez

I have a query to extract the image from the items, but I can't add it to a report because the image or the table field doesn't have the information in base64 (encoded). It only returns an image ID and the file name.
Do you know of a validation method I can apply to the RTF file so I can view the image, please?

SELECT ITEMBASEPEO.ITEM_NUMBER
,ITEMBASEPEO.DESCRIPTION
,ITEMBASEPEO.ORGANIZATION_ID

  ,(SELECT (SELECT PROFILE_OPTION_VALUE FROM FND_PROFILE_OPTION_VALUES WHERE PROFILE_OPTION_ID IN (SELECT PROFILE_OPTION_ID FROM FND_PROFILE_OPTIONS_VL WHERE PROFILE_OPTION_NAME = 'EGP_UCM_URL'))||'/cs/idcplg'||'?IdcService=GET_FILE&ID='||(SELECT DM_VERSION_NUMBER FROM FND_DOCUMENTS_VL WHERE DOCUMENT_ID = (SELECT DOCUMENT_ID FROM FND_ATTACHED_DOCUMENTS WHERE PK1_VALUE = TO_CHAR(ITEMBASEPEO.ORGANIZATION_ID) AND PK2_VALUE = TO_CHAR(ITEMBASEPEO.INVENTORY_ITEM_ID) AND CATEGORY_NAME = 'IMAGE' AND ROWNUM = 1)) FROM DUAL) AS IMAGE


  ,(SELECT (SELECT DM_VERSION_NUMBER FROM FND_DOCUMENTS_VL WHERE DOCUMENT_ID = (SELECT DOCUMENT_ID FROM FND_ATTACHED_DOCUMENTS WHERE PK1_VALUE = TO_CHAR(ITEMBASEPEO.ORGANIZATION_ID) AND PK2_VALUE = TO_CHAR(ITEMBASEPEO.INVENTORY_ITEM_ID) AND CATEGORY_NAME = 'IMAGE' AND ROWNUM = 1)) FROM DUAL) AS IMAGEE


  ,(SELECT (SELECT TITLE FROM FND_DOCUMENTS_VL WHERE DOCUMENT_ID = (SELECT DOCUMENT_ID FROM FND_ATTACHED_DOCUMENTS WHERE PK1_VALUE = TO_CHAR(ITEMBASEPEO.ORGANIZATION_ID) AND PK2_VALUE = TO_CHAR(ITEMBASEPEO.INVENTORY_ITEM_ID) AND CATEGORY_NAME = 'IMAGE' AND ROWNUM = 1)) FROM DUAL) AS TITLE


  ,(SELECT (SELECT OBJECT_CONTENT_TYPE FROM FND_DOCUMENTS_VL WHERE DOCUMENT_ID = (SELECT DOCUMENT_ID FROM FND_ATTACHED_DOCUMENTS WHERE PK1_VALUE = TO_CHAR(ITEMBASEPEO.ORGANIZATION_ID) AND PK2_VALUE = TO_CHAR(ITEMBASEPEO.INVENTORY_ITEM_ID) AND CATEGORY_NAME = 'IMAGE' AND ROWNUM = 1)) FROM DUAL) AS OBJECT

FROM EGP_SYSTEM_ITEMS_VL ITEMBASEPEO

WHERE 1=1
AND ITEMBASEPEO.INVENTORY_ITEM_ID = :ITEMID
AND ITEMBASEPEO.ORGANIZATION_ID = :ORGID

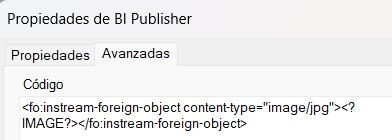

I applied this code into the RTF

Thanks team!

Riyaz Ali-Oracle

Hi @Josue Jimenez,

Try the below:

Instead of embedding the image directly, you can reference the image URL dynamically in the RTF template using BI Publisher’s url:{} syntax.

1. Steps to Implement
   Construct the Image URL in Your Query You already have this part mostly done. Ensure the final URL looks like:
   https://<UCM_HOST>/cs/idcplg?IdcService=GET_FILE&ID=<Document_ID>&dDocName=<File_Name>
   You can concatenate this in your SQL query as a column named IMAGE_URL.
2. Use url:{} in the RTF Template In your RTF template, insert a form field where you want the image to appear.
   Right-click → Insert → Form Field → Text Input
   Set the field name to:
   url:{IMAGE_URL}
3. Enable Image Download in BI Publisher Make sure your BI Publisher settings allow external image downloads:
   Go to BI Publisher Admin → Report Properties
   Enable “Allow External Image References”

Check the below:

How to upload Images in Fusion and use them in RTF — Oracle Analytics

How to use images dynamically in BI Publisher RTF template — Cloud Customer Connect

Oracle Fusion BI Publisher: How to use images dynamically in BI Publisher RTF template (Doc ID 2409855.1)

Thanks,
Riyaz Ali

Josue Jimenez

Hi @Riyaz Ali-Oracle

I reviewed what you shared, and the image data type test (base64) was successful. When validating the repository where the images the data administrator uploaded to the ERP are located, it seems we can't access them and, therefore, we can't generate the report, even with BLOB data.
I'll keep what you shared for future reports.
Best regards!

Bhaskar Konar

https://community.oracle.com/products/oracleanalytics/discussion/comment/69989#Comment_69989

Very helpful information.

Thanks for sharing @Riyaz Ali-Oracle!
